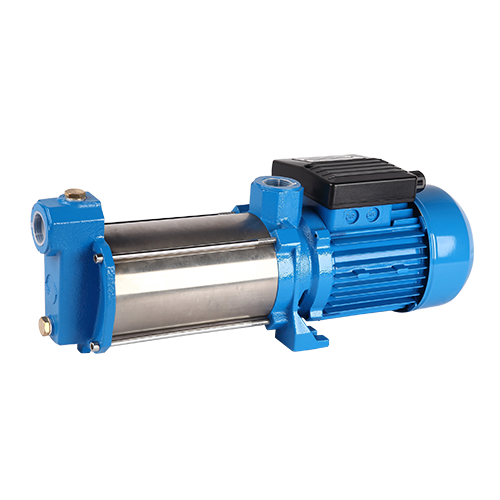

YINJIA is China manufacturer & supplier who mainly produces horizontal multi-stage water pump with many years of experience. Hope to build business relationship with you. YMP series horizontal multi-stage water pump is a most popular type of centrifugal pumps, with three or more impellers, it can make higher pressure than single stage pump, widely used at various sites that request high pressure.
APPLICATIONS
-Centrifugal vertical and horizontal multistage water pumps able to develop high pressure and a high water lift with a comparatively low power consumption.
-Universal pump for civil and industrial purposes,for high pressure system and for irrigation in agriculture and sports fittings.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Pump casing: Stainless Steel AISI 304
-Diffuser: PPO
-Impeller: PPO
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechaniacal seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
YMP3 PERFORMANCE CHART
YMP6 PERFORMANCE CHART
YMP9 PERFORMANCE CHART
DIMENSIONS
YMPV SERIES EXPLODING DRAWING
