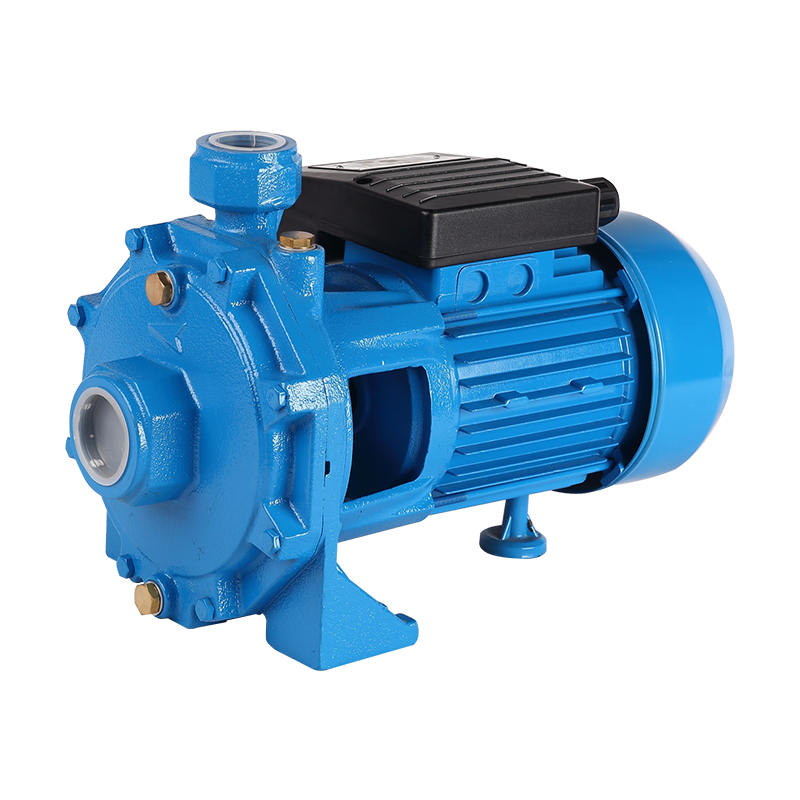

YINJIA is a professional China two impeller high pressure pump manufacturer and supplier, if you are looking for the best two impeller high pressure pump with low price, consult us now! SCM2 series two impeller high pressure pump belongs to the two impeller pump category, is a classical and popular pump in the global market. The main feature are the two opposite impellers which allow higher lifts than in the single-impeller model.
APPLICATIONS
-Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquids. The main feature are the two opposite impellers which allow higher lifts than in the single-impeller model.
- They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass for 0.75-5.5kW, cast iron for 11-15kW
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
PERFORMANCE CHART
SCM2-45/52/55/60
SCM2-70/80/90
