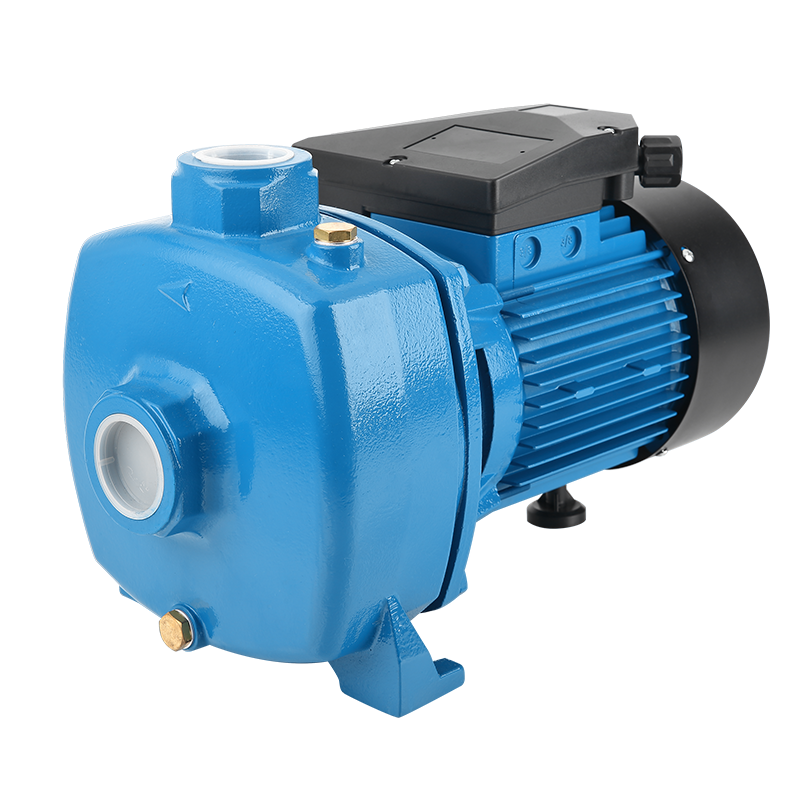

High quality self-priming two impeller water pump is offered by China manufacturer YINJIA. Buy self-priming two impeller water pump which is of high quality directly with low price. CM2 series two impeller deep suction pump belongs to the two impeller pump category, is a classical and popular pump in the global market. Self-priming twin-impeller water pumps with ejector for suction up to 9 mt. A suction up to 35 mt. depth can be allowed by taking the ejector down and connecting it to the pump by means of a double hose and a foot valve.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Forged Brass
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-Forged brass impeller
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 9 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +60℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
PERFORMANCE
DIMENSIONS
CM2 SERIES EXPLODING DRAWING
