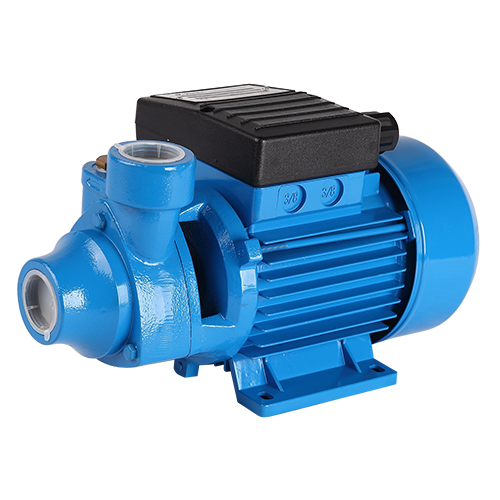

IDB Electric Surface Energy Saving Domestic Peripheral Booster Water Pump

Name: IDB Electric Surface Energy Saving Domestic Peripheral Booster Water Pump
Brand: Yinjia
Rating: 5.0 (48 reviews)


Availability:

Inquire Add to Basket

Model:
IDB series
Brand:
Yinjia

Model:IDB
YINJIA Pump is a professional surface clean water pump manufacturer in China since 1990, has specialized in manufacturing various of surface clean water pumps, as well as providing quality electrical peripheral water pump for the world. We are committed to providing high quality product at a competitive price and backed up with superior service. Welcome to inquiry for electrical peripheral water pump.

Vortex theory pump Booster type pump Turbine type pump Single-stage structure pump High pressure pump Water pumping Water pump price Irrigation systems Water supplier pump Water pump agriculture

Product Description

As a professional electrical peripheral water pump manufacturer, you can rest assured to buy electrical peripheral water pump from YINJIA factory and we will offer you the best after-sale service and timely delivery. IDB series electrical peripheral water pump belongs to the single-phase peripheral pump category, is a classical and popular pump in the global market. The small water pump with peripheral impeller are able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. The pump is assembled with very resistant and durable materials which is able to guarantee a very high solidity and the almost total absence of wear over time. Pumps should be installed in a covered area, protected against the weather.

Product Feature And Application

APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body/motor bracket: cast iron
-Impeller: Brass
-Bearing: C&U
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-No block system
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 6-8 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +90℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1

Product Parameter (Specification)

PERFORMANCE

IDB35 - 0.22 kW / 0.3 HP - Max. Head 33m - Max. Flow 35 l/min - 1" water pump
IDB40 - 0.37 kW / 0.5 HP - Max. Head 40m - Max. Flow 35 l/min - 1" water pump
IDB60 - 0.55 kW / 0.75 HP - Max. Head 65m - Max. Flow 40 l/min - 1" water pump
IDB70 - 0.75 kW / 1 HP - Max. Head 70m - Max. Flow 45 l/min - 1" water pump

DIMENSIONS
