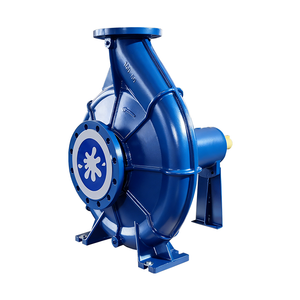

YINJIA is a leading China industrial end-suction pump manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products. XA series industrial end-suction pump, built to DIN24255/EN733 standard. Frame mounted pump design, back pullout construction with integral foot mounted casing enables disassembly and inspection without removal of suction and discharge piping. Pumps of the same model have different performance levels basing on different diameter after impeller trimming. A complete range to meet customers demands.
APPLICATIONS
-XA pumps are used for pumping clean water or liquids which characteristic of chemical and physical is similar to water. They are suitable for plants. cover and rotan mine, city water supply, air-condition, firefight system and irrigation. frame is supplie and irrigation.
-For a pump of same model, the performance can be changed by cutting The motor drive their outer diameter of impeller(which is indicated as the letter A. B or C. at the end of model name).
- XA pump is simple in structure, reliable in performance, small in size, light in The volute casin weight, high in suction lift, low in power consumption and easy in iron, the shaft i means of soft- maintenance.
-Stainless steel XA pumps allow some liquid within a certain range of stainless steel,frame is made o aggressive.
CONSTRUCTION DETAILS
-The pump is back-pull-out design, which allows disassembling the casting cover and rotary components without removing the pipe works. The mounting frame is supplied with two ball bearings lubricated by grease or engine oil.
-The motor drives the pump through the flexibly coupling directly.
-The suction and discharge flange the casing and pump foot are all cast to whole.-The volute casing, impeller and the volute casing cover are all made of cast iron, the shaft is made of high tensile steel. The Sealing box is sealed by means of soft-packed or mechanical seal; the shaft sleeve is made of stainless steel, the support foot, which is an auxiliary frame to the mounting frame is made of carbon steel.
"ISO Sovereign"BACK PULL OUT
Assembling of pump-motor through a coupling on a base-plate enable an easy disassembling of the complete rotor without modifying the alignment of the pump group and without disconnecting pipes and motor.
PERFORMANCE DATA
MODEL DEFINED
E.g. XA32/13A means pump outlet diameter is 32mm, the impeller nom-inal diameter is 13cm. Impeller is after the first cutting.
DIMENSIONS
