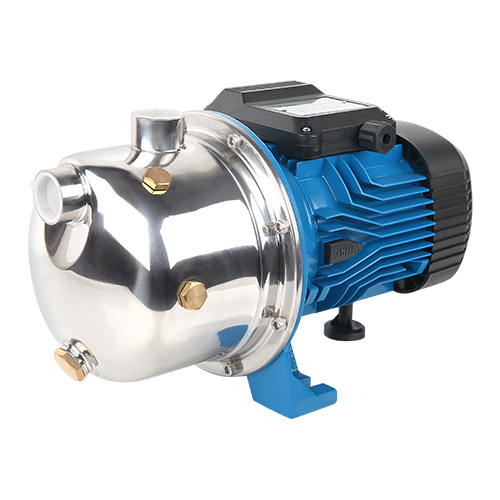

YINJIA as the professional manufacture, we would like to provide you high quality NEW stainless steel self-priming JET pump. And we will offer you the best after-sale service and timely delivery. JSM series new stainless steel self-priming JET pump belongs to the single-phase self-priming JET pump category. The electrical JET pumps have high performance in terms of head and flow rate, ideal for residential use when there is a need for the self-priming function, suitable to drain water from river and shallow well. Pumps should be installed in a covered area, protected against the weather.
APPLICATIONS
-Suitable for use with clean water, or non-aggressive liquids only, without sand or other solid impurities.
-Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
DESIGN FEATURES
-Pump body: SUS304
-Motor bracket: Cast iron
-Impeller: Brass
-Ejection union: PPO
-100% copper winding
-Built-in thermal protector for single phase motor
-Motor shaft: AISI 304 welded shaft
-Mechanical seal: Graphite/Ceramic/NBR/S.S304
SPECIAL FEATURES ON REQUEST
-Anti-rust treatment for casting
-PPO/SUS304 impeller
-AISI 1045 motor shaft
-Carbon/SiC/V mechanical seal
-Other voltage and frequnecy
-Insulation class: F
OPERATING LIMITS
-Total suction lift up to 9 mt. with foot valve
-Max. operating pressure: 8 bar.
-Max. ambient temperature: +40℃
-Max. liquid temperature: +60℃
-Max. altitude: +1000 mt.
MOTOR
-Insulation class: B
-Protection: IP44
-Speed of rotation: 2850rpm
-Continuous duty: S1
PERFORMANCE
JSm37 -0.37 kW / 0.5 HP - Max. Head 42m - Max. Flow 40 l/min - 1" water pump
JSm55 - 0.55 kW / 0.75 HP - Max. Head 46m - Max. Flow 45 l/min - 1" water pump
JSm75 - 0.75 kW / 1 HP - Max. Head 50m - Max. Flow 50 l/min - 1" water pump
DIMENSIONS
JSM EXPLODING DRAWING
